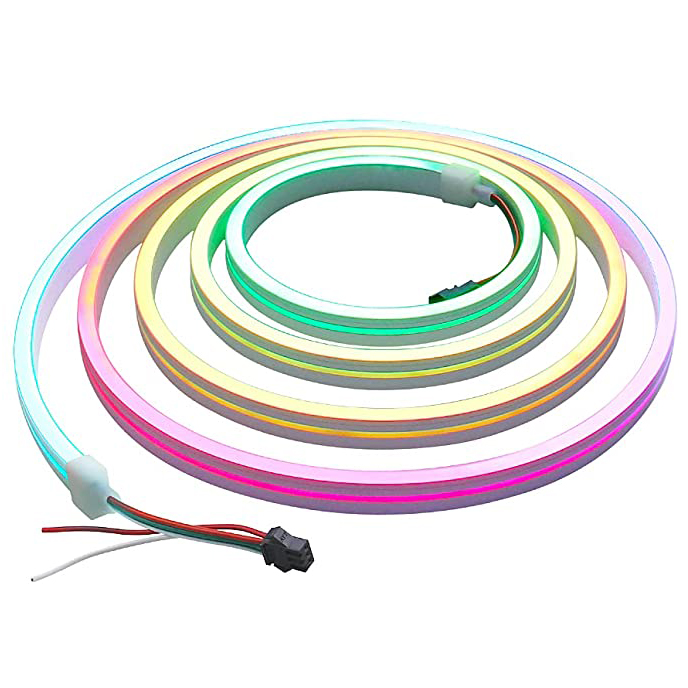

WS2811-Neon

    Wattage: 28.8W
    LED light source: 3838 RGB LED
    Life span: 50000hrs
    Protection Rate: With reverse polarity protection & hot swap protection

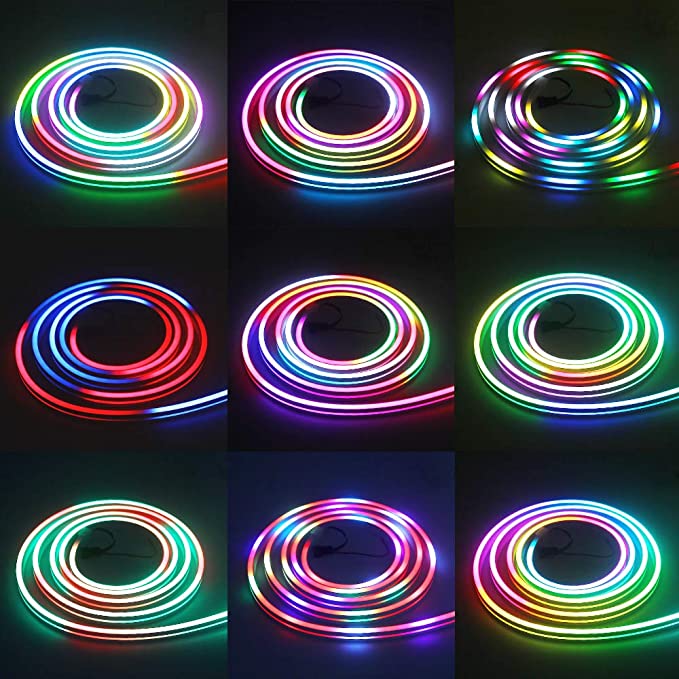

    Emitting Color: Addressable magic RGB color
    Connector: 3-pin JST SM
    Bag: Anti-static foiled bag
    IC type: WS2811 IC

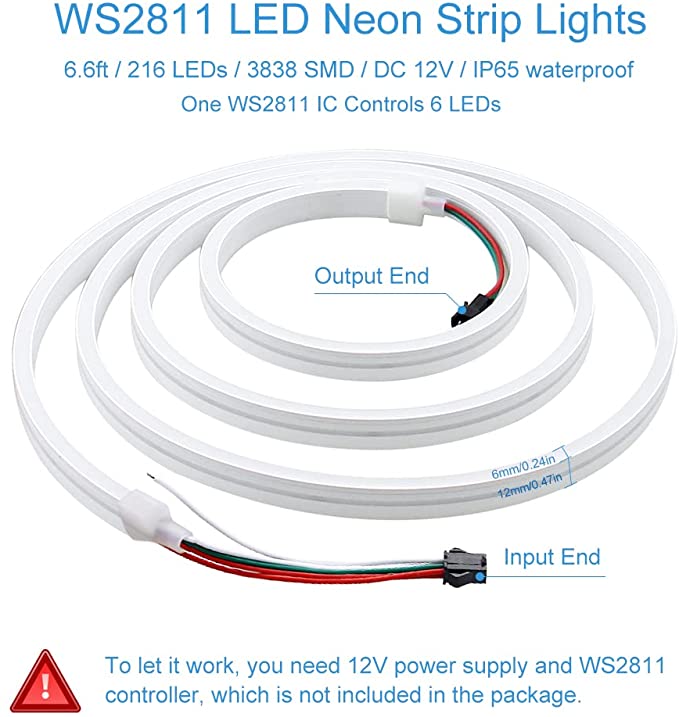

    Connection: Red wire: 12V+ ; Black wire: GDN; Green wire: Data
    Dimension: 2000x12x6mm
    Max current: 1.2A/meter, 2.4A/rol
    Wave length(NM): R/630nm; G/520nm; B/470nm
    Addressable: 6 LEDs with 1 IC, Group addressable
    LED Qty: 108pcs/M, 216pcs/roll
    IC Qty: 18pcs/M, 36pcs/roll
    Working Voltage: DC 12V
    Color: full color(24-bit), 256 Grey levels
    Protection Level: Waterproof IP65

    Kindly note
    1)It is not 1-LED individually addressable LEDs, but 6-LED addressable.
    2) Please make sure to use a 12V DC power supply to power these strips, do not use higher than 12V or you can destroy the entire strip.

    Applications:

      Widely used for home decoration, hotels, clubs, shopping malls;

      Architectural decorative lighting, boutique atmosphere lighting; Extensively applied in backlight, concealed lighting, channel letter lighting;

      Decorative lights for holiday, event, show exibition;

      Application for automobile and bicycle decoration, border or contour lighting.
