Kindly Note:
1. Please make sure to use a 5V DC power supply to power these strips, do not use higher than 6V or it will destroy the entire strip.
2. Power supply need to be selected according to the total power of LED strip, we recommend to use 80% max power of power supply.
3. It is better to inject power between each 5meters when connect them in series in case of voltage drop.

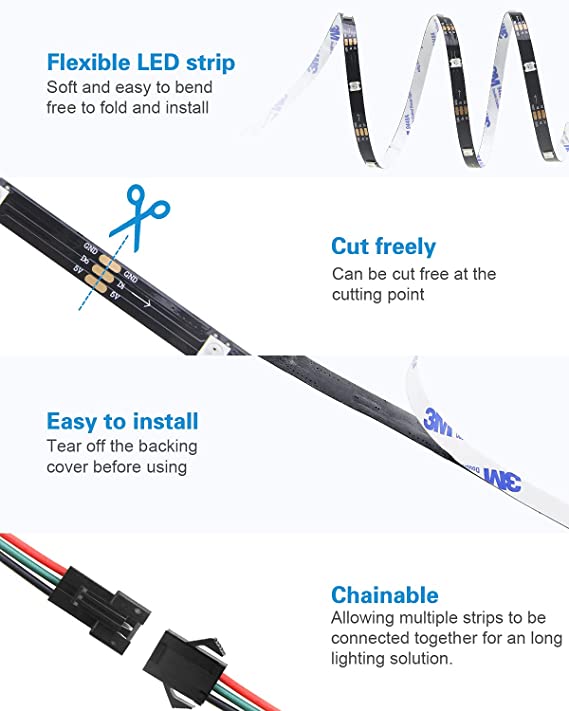

4. The strips are made of flexible PCB. You can gently bend it to an arc. But please NEVER rudely bend it to right or acute angle, otherwise the circuit board will be cracked.
Applications:
Widely used for home decoration, hotels, clubs, shopping malls;
Architectural decorative lighting, boutique atmosphere lighting; Extensively applied in backlight, concealed lighting, channel letter lighting;
Decorative lights for holiday, event, show exibition;
Application for automobile and bicycle decoration, border or contour lighting.
3 / 8

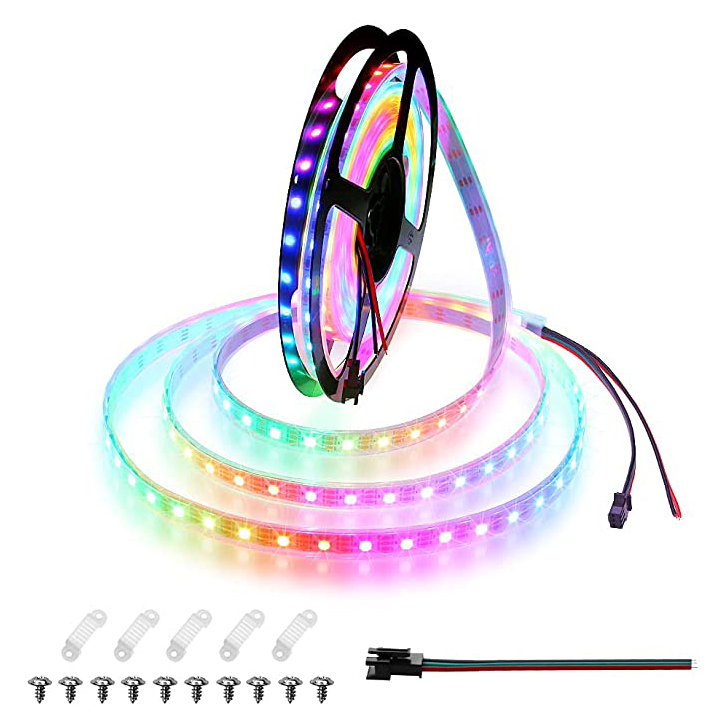

SL-WS2812
Input Voltage: DC 5V
Wattage: 60W
LED light source: 5050 RGB LED
Beam angle: 120°
Life span: ≥50000hrs
FPCB color: White/Black
Protection Rate: With reverse polarity protection & hot swap protection
Emitting Color: Addressable magic RGB color
Connector: 3-pin JST SM
Bag: Anti-static foiled bag
IC type: WS2812B
Black wire: GDN
Connection: Red wire: 5V+
Working environment: -20℃-50℃

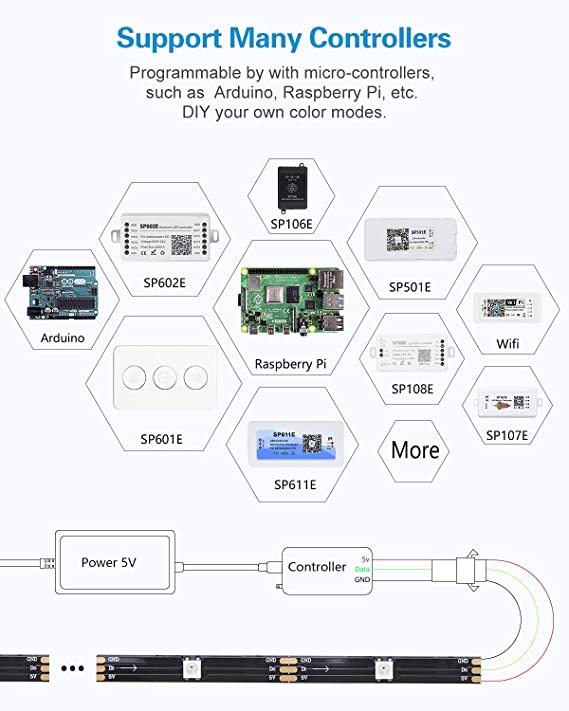

Green wire: Data
Dimension: 5000x12x4mm
IP Rating: IP20/IP65/IP67/IP68
Max current: 2.4A/m, 12A/roll
Wave length(NM): R,620~625nm ; G,515~525nm; B,465~475nm
R G B order: G/R/B; NOT R/G/B

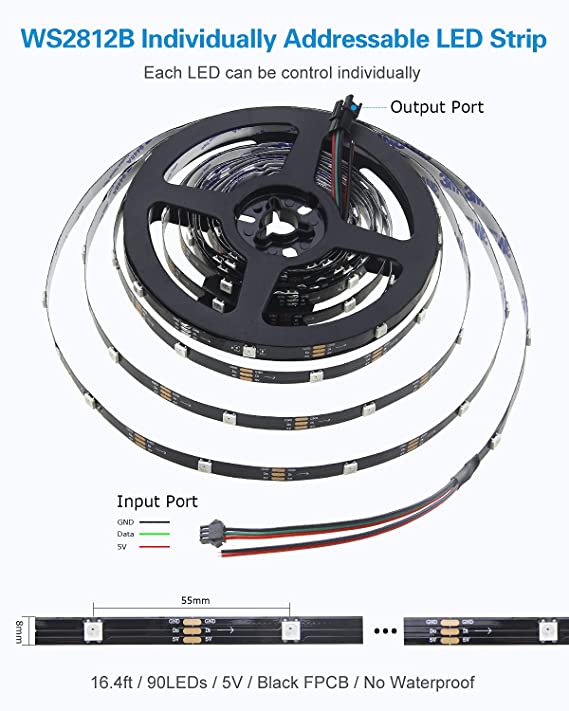

Addressable: 1 integrated RGB LEDs per segment, individually addressable
LED Qty: 60 LEDs /m, 300 LEDs /roll (30LEDs/m, 50LEDs/m for options)

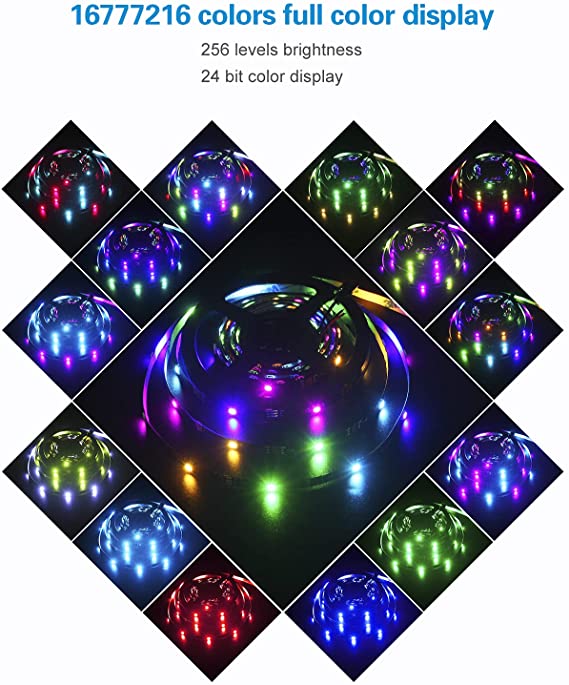

Color: full color(24-bit), 256 Grey levels
